Point source

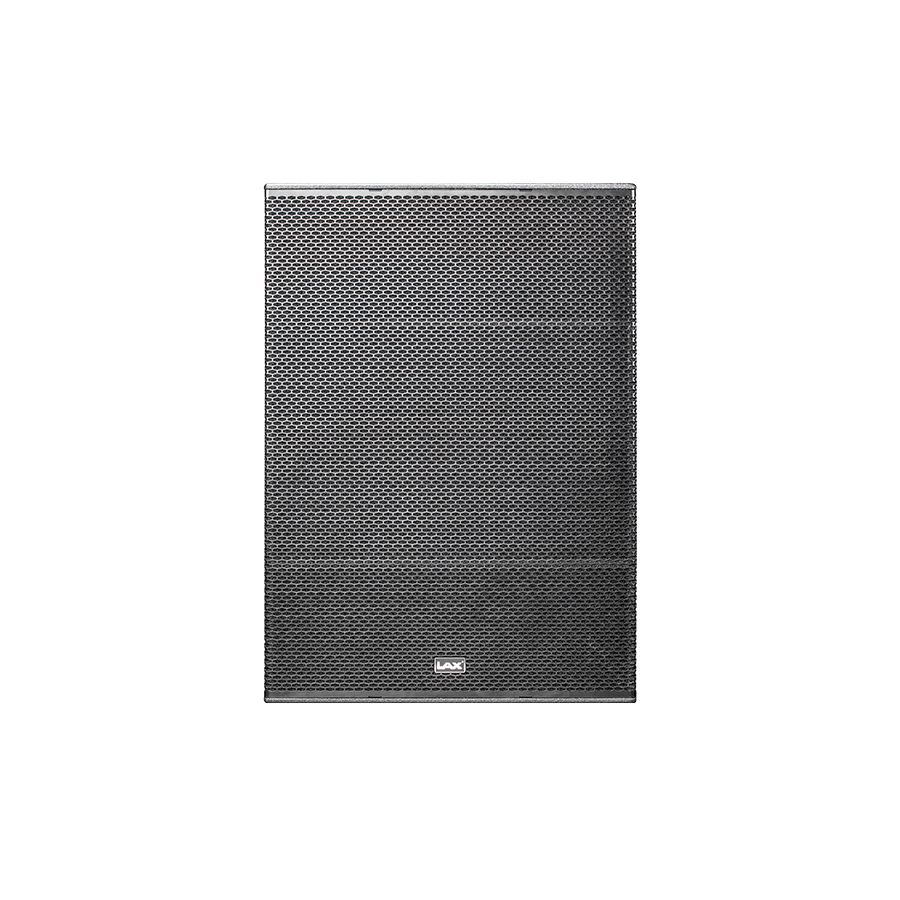

ST212
all capacities
indoor + outdoor
Dual 12" 3 Way Beam Array Speaker
The ST212 speaker adopts a beam wave scheme driven by dual 12 inch low-frequency speakers with folded hor for mid to low bass, andthe folded horn does not significantly increase the volume of the speaker.
The medium and high frequency adopts an innovative coaxial neodymium magnetic driver, which controls the sound wave through high-precision horn control. The controlled medium and high frequency wavelength matches seamlessly with the low-frequency horn, and canbe regarded as a powerful horn beam structure. The above design can achieve full band confinement from 200Hz to 18kHz, achievingcontrollable directional performance of sound waves.
Simplify the system architecture, adopt a three-way and two drive approach, and use LAX digital audio processing technology to reducethe number of system power amplifiers while ensuring excellent sound coupling.
Specifications
- Frequency Response (-10 dB)75 Hz-19 kHz
- Sensitivity (1W/1m)105 dB(LF) , 110 dB(MHF)
- Max SPL@ 1m138 dB (LF), 140 dB (MHF)
- Rated Power (AES)600W(LF), 80W(MHF)
- Nominal Impedance8Ω(LF) , 8Ω(MHF)
- Directionally (H x V)70° x 50° (The horn can rotate 90 degrees)
- Compression Driver4
- Woofer2 x 12
- Connection2 x NEUTRIK NL4MP sockets
- Dimensions (WxHxD)650 x 700 x 905 mm
- Net Weight82.3 kg
