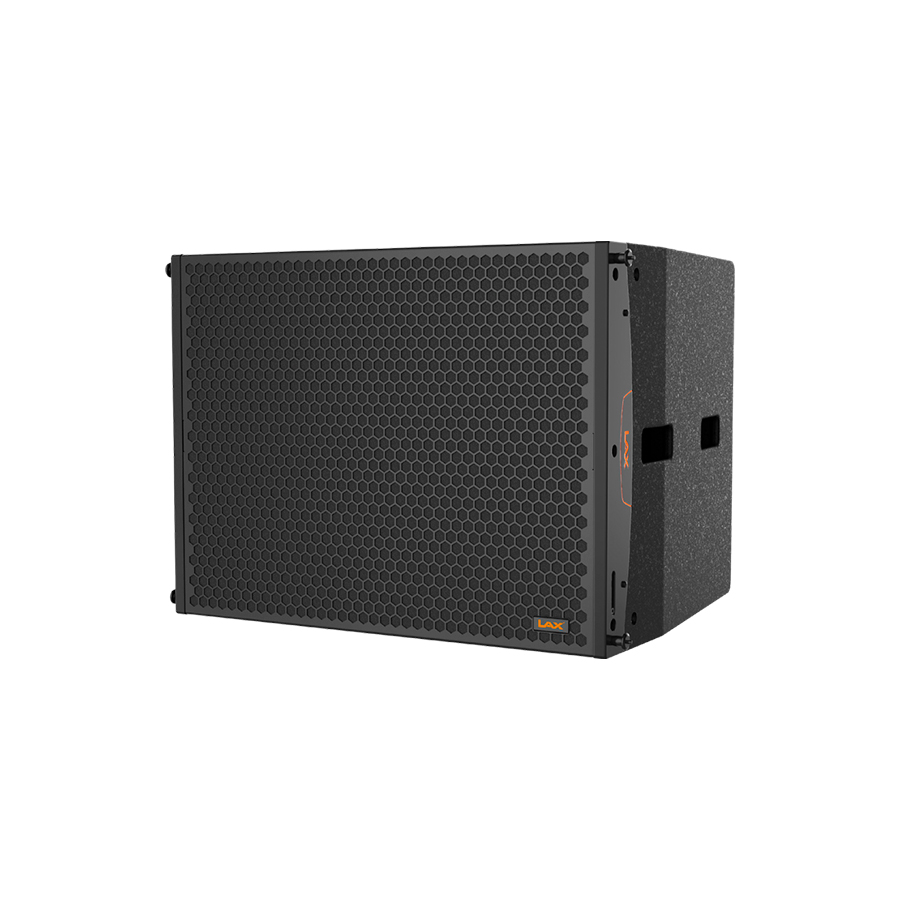

Single 18'' Subwoofer

An 18-inch double-voice coil unit is used to make the power ofthe whole box reach 900W

Sound box has good heat dissipation design to ensure long-term operation.

It has good transient effect, and the frequency response is aslow as 31.5Hz.

The suspension system is made of aluminum, with threesuspension connection points, which can reduce the weight,and can be installed up to 16, with a safety factor of 7:1.

Two installation methods, hanging and stacking.

Applicable to LAX DSP audio processor and power amplifier,with built-in preset program to achieve the best factory effect.

Specifications

Frequency Response
31.5Hz-500KHz
Sensitivity (1W/1m)
97 dB
SPL (1m)
123 dB (continuous), 134 dB (peak)
Rated Power (AES)
900W
Nominal Impedance
8ohm
Connection
2 x NEUTRIK NL4MP socket, 2+2-
Dimensions (WxHxD)
752 x 600 x 530 mm
Net Weight
42 kg
