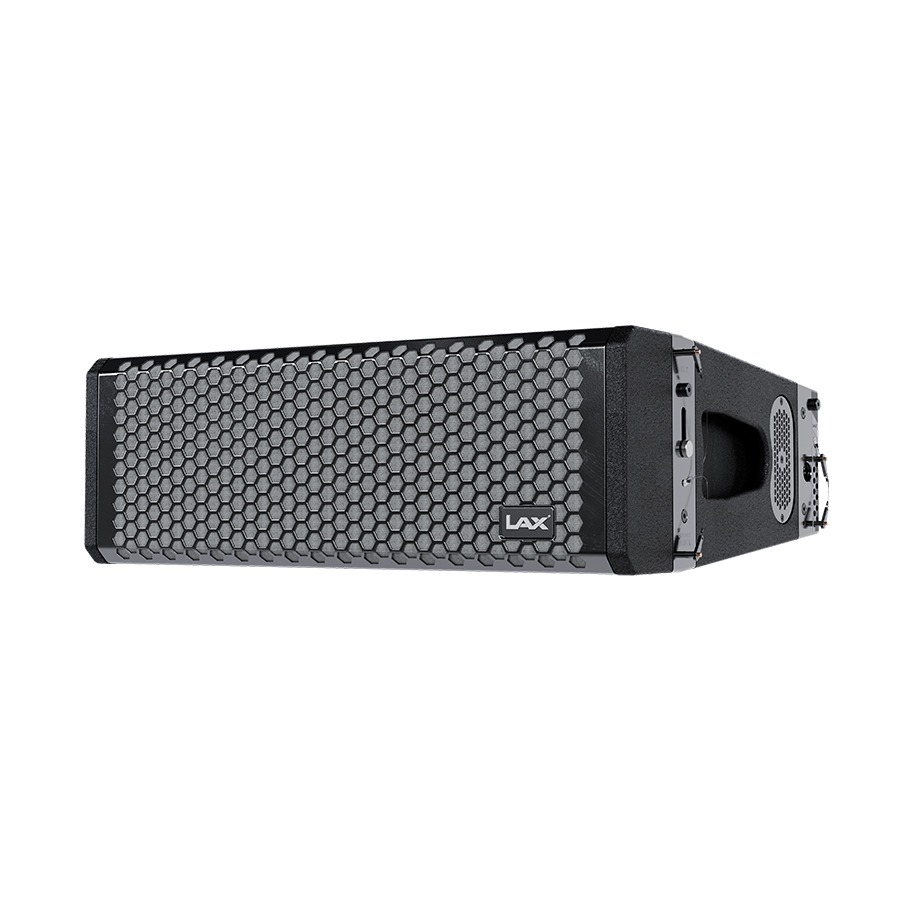

Dual 10" Two-way Line array Speaker

The treble uses a ferrite unit to achieve line sound source conversion using LAX patented technology.

Bass using two 10 inch imported material ferrite unit, installed in the phase type box, improve the low frequency effect.

Hanging system adopts aluminum material, three hanging connection points, reduce weight, a maximum of 16 installation, safety factor of 7:1. Adjustable Angle between speakers is 0°-10°, which can be combined with OPL118B subwoofer speakers.

Two installation methods: hanging and stacking.

Applicable to LAX DSP audio processor and power amplifier, built-in preset program, to achieve the best factory effect.

Specifications

Frequency Response
80Hz-20KHz
Sensitivity (1W/1m)
103 dB
SPL (1m)
128 dB (continuous), 140 dB (peak)
Rated Power (AES)
600W
Nominal Impedance
80hm
Directionally (HxV)
100° x 20°
Box Structure
Inverted phase
Connection
2 x SPEAKON NL4MP, 1+1-
Dimensions (WxHxD)
752 x 424 x 285 mm
Net Weight
29 kg
