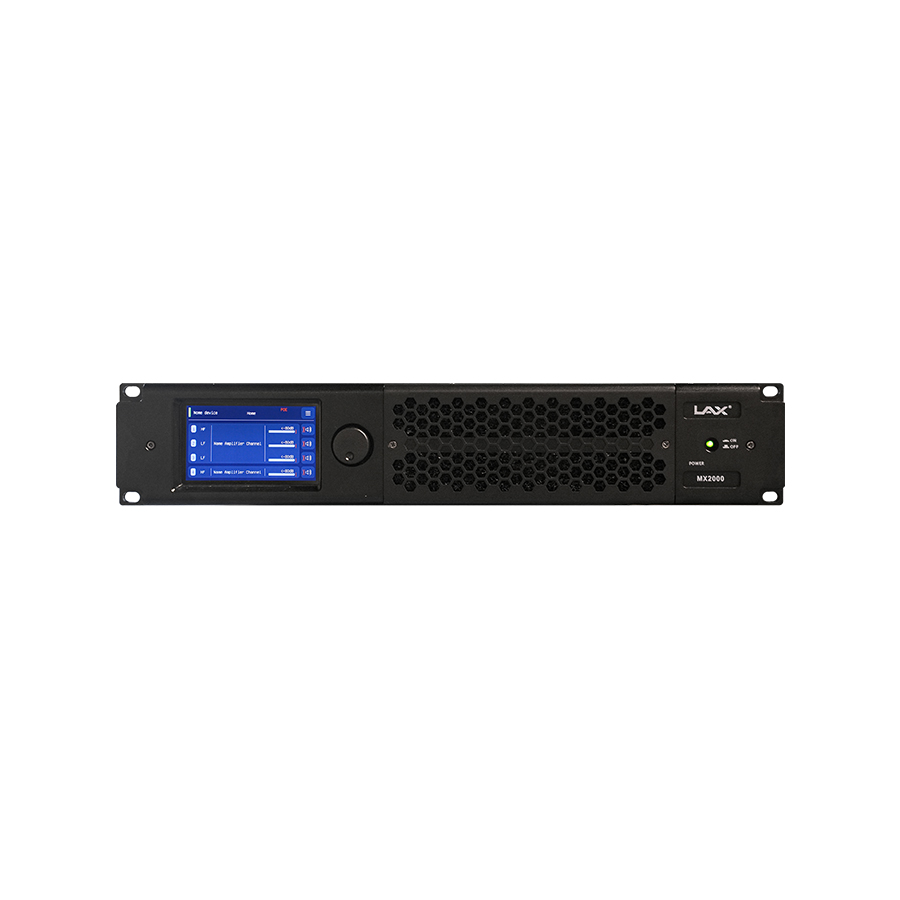

Digital GaN Power Amplifier 4 x 2000W Digital Processing Amplifier

The MX2000 digtial Gallium Nitride (GaN) amplifier is a 4-Channel, high power,high performance audio amplifier with dedicated graphical grouping audio control software, designed specifically for use with LAX's new speaker products.

It adopts both AVB digital and analog configurations, featuring master/slave switch, real-to-digital conversion, and digital-to-analog backup. It offer comperhensive speaker management, switchable filter functionality, and remote control capabilities to meet the needs of various application scenarios.

It has a built-in speaker preset database for setting compression, equalization, crossover,FIR,and level settings, ensuring consistent results and optimal performance from LAX amplifiers.

Different output configurations can be set for different speakers, including dual-channel, quad-channel, and mixed modes, with more control functions to be added gradually in the future.

Specifications

Model
MX2000
8Ω
4 x 2000W
4Ω
4 x 3800W
2Ω
4 x 5600W
Bridge 8Ω
2x7600W
Bridge 4Ω
2 x 6000W
Frequency response (1W/8Ω)
10Hz - 30kHz, +0/-1dB
Total harmonic distortion (THD+N)
<0.02%
Damping factor
≧500:1
Input gain
20dB 23dB 26dB 29dB 32dB 35dB 38dB 41dB
Signal-to-noise ratio (A-weighted)
≧105dB
Imput impedance
20KΩ(balanced)/10KΩ(unbalanced)
Separation
≧70dB
Input common-mode rejection ratio
≧65dB
Input connector
One balanced XLR per channel
Output connector (speaker connection interface)
4-POLE Speakon per channel
Power supply
100-240VAC, 50Hz/60Hz
Dimensions (H*W*D）
88mm*483mm*441mm
Net weight
15kg
