2 Channel Power Amplifier

The MT series features a unique hybrid Class D design, that essentially delivers a Class A sound quality, but with the energy efficiency of a Class H amplifier.

Available in both 2 or 4 channel configurations, MT series amplifiers are light and compact, whilst maintaining a very high and efficient power output.

Specifications

Model

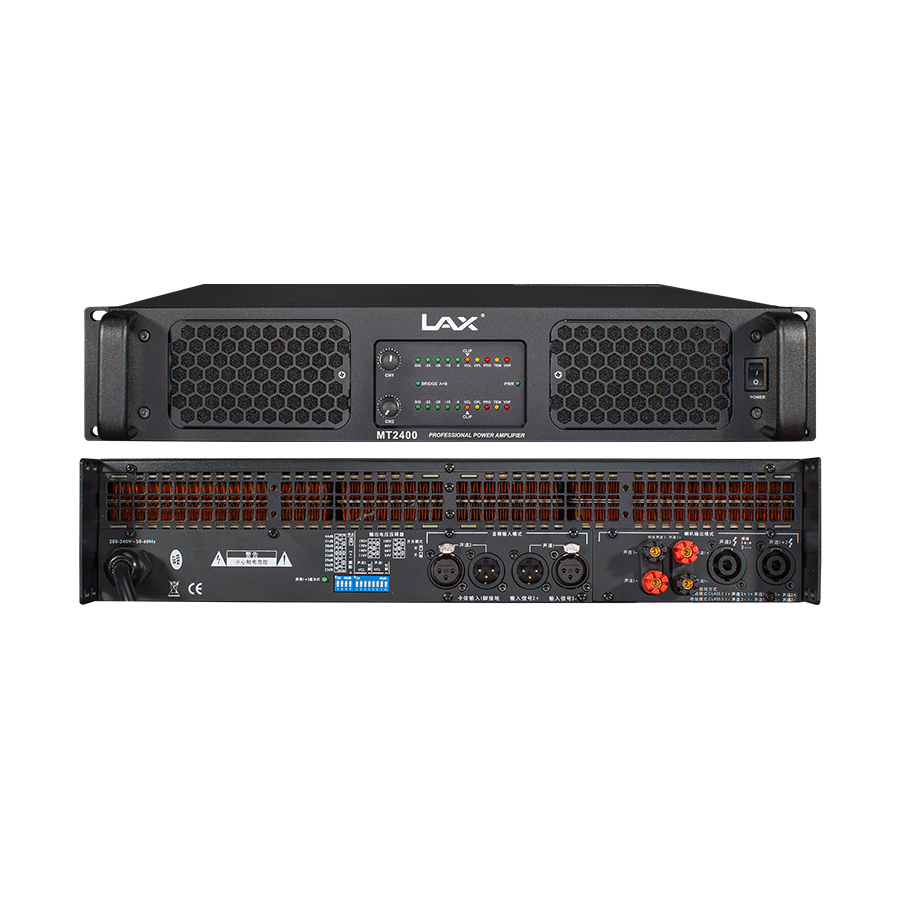

MT2400
8Ω
2 x 2400W
4Ω
2 x 4350W
2Ω
2 x 7000W
Bridge 8Ω
8700W
Bridge 4Ω
14000W
Frequency response
20Hz - 25kHz, (±0.51dB)
Total harmonic distortion (THD+N)
<0.5%
S/N Rate
110dB
Input gain
23dB 26dB 29dB 32dB 35dB 38dB 41dB 44dB
Input Socket
XLR Female
Imput impedance
20KΩ(balanced)/10KΩ(unbalanced)
Output Socket
Neutrik Speakon
Front Panel Indicator
Protection (High Frequency, Mute, Over Heating) Bridge Mode, Operating Status
Protection
Short Circut, Open, Overheating, Overload,DC, etc
Power
200-240V~50Hz/60Hz
Minimun Start Voltage
180-240V~50Hz/60Hz
Dimensions (H*W*D）
88mm*483mm*377mm
Net weight
13kg
