TH912
full range

TH912

all capacities indoor + outdoor

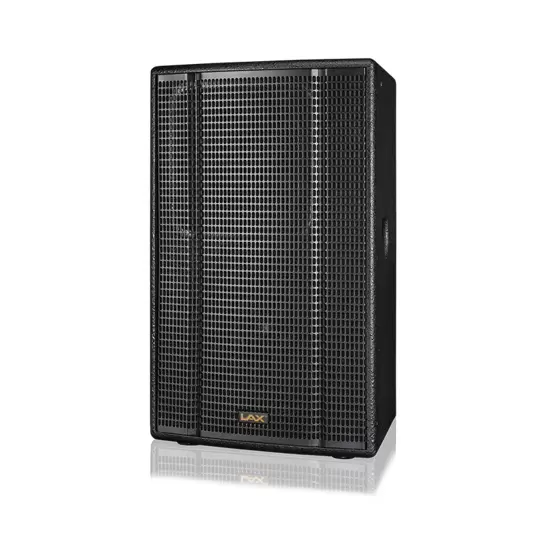

Single 12" Two-way Full Range Speaker

- A high quality titanium compression driver with a 1.4"horn throat and a 75 mm aluminium voice coil.

- The 12" low frequency driver is a high output driver featuring a 75 mm (3") copper voice coil, and can operate at high SPL.

-The LF driver is designed to provide verygood BL and punch, and features an excellentlinear response down to 50 Hz, with very low distortion characteristics.

- Precision-made 18 mm and 15 mm Baltic birchplywood cabinet (up to 11-ply) is finished with durable paint and wedge-bonded for additional strength and rigidity.

- Reinforced V-Slot grille reduces internal vibration noise.

- Designed for fixed-installation and portable applications.

-Recommended for use with S118B, WS118B and AT218B Subwoofers.


OVERVIEW


OVERVIEWOVERVIEWOVERVIEWOVERVIEW

Specifications
  • Frequency Response (±3 dB)
    50 Hz-18 kHz
  • Frequency Response (-10 dB)
    40 Hz-20 kHz
  • Sensitivity (1W/1m)
    100 dB
  • Max SPL@ 1m
    132 dB
  • Rated Power (AES)
    400W
  • Nominal Impedance
  • Compression Driver
    1 x 1.4'' Ferrite / 75mm v.c
  • Woofer
    1 x 12''  Ferrite / 75mm v.c
  • Crossover Frequencies
    1300 Hz
  • Dispersion (HxV)
    60° x 40°
  • Box Structure
    Phase Inverted
  • Connectors
    2 x NEUTRIK NL4MP
  • Connect Pin
    1+1-
  • Hanging Point
    12 x M10, Pole Mount/Cap
  • Dimensions (WxHxD)
    400 x 360 x 645 mm
  • Net Weight
    26 kg
