productsTH915
TH915
full range

TH915

all capacities indoor + outdoor

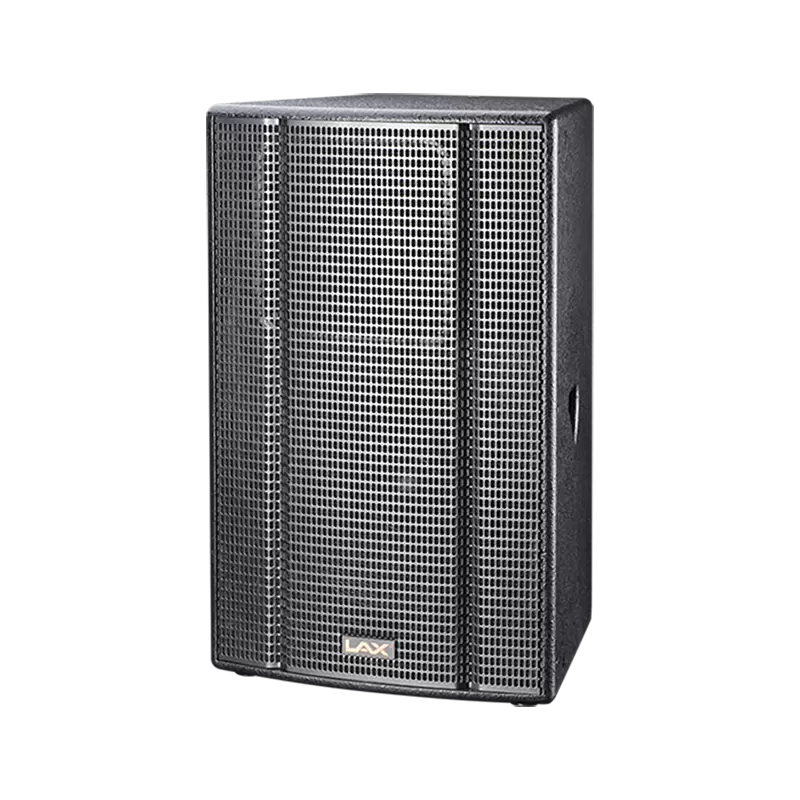

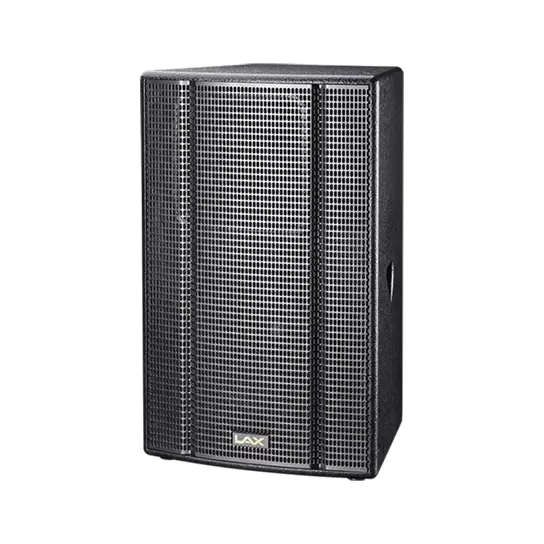

Single 15" Two Way Full Range BSpeaker

- A high quality titanium compression driver with a 1.4"horn throat and a 75 mm aluminium voice coil.

-The 15" low frequency driver is a high output driver featuring a 75mm (3") copper voice coil, and can operate at high SPL.

The LF driver is designed to provide verygood BL and punch, and features an excellent linear response down to 50 Hz, with very low distortion charactenistics.

-Precision-made 24 mm, 18 mm and 15 mmBaltic birch plywood cabinet (up to 15-ply) isfinished with durable paint and wedge-bonded for additional strength and rigidity.

- Reinforced V-Slot grille reduces internal vibration noise.

- Designed for high-end fixed-installation andportable applications.

-Recommended for use with S118B, WS118B,AT218B, and T18B-V2 Subwoofers.


OVERVIEW
Specifications
  • Frequency Response (±3 dB)
    40 Hz-18 kHz
  • Frequency Response (-10 dB)
    35 Hz-20 kHz
  • Sensitivity (1W/1m)
    102 dB
  • Max SPL@ 1m
    132 dB
  • Rated Power (AES)
    450W
  • Nominal Impedance
  • Compression Driver
    1 x 1.4'' Ferrite / 75mm v.c
  • Woofer
    1 x 15'' Ferrite / 75mm v.c
  • Crossover Frequencies
    1300 Hz
  • Dispersion (HxV)
    60° x 40°
  • Box Structure
    Phase Inverted
  • Connectors
    2 x NEUTRIK NL4MP
  • Connect Pin
    1+1-
  • Hanging Point
    12 x M10, Pole Mount/Cap
  • Dimensions (WxHxD)
    460 x 440 x 742 mm
  • Net Weight
    30 kg
