productsOP3210L
OP3210L
line array

OP3210L

all capacities indoor + outdoor

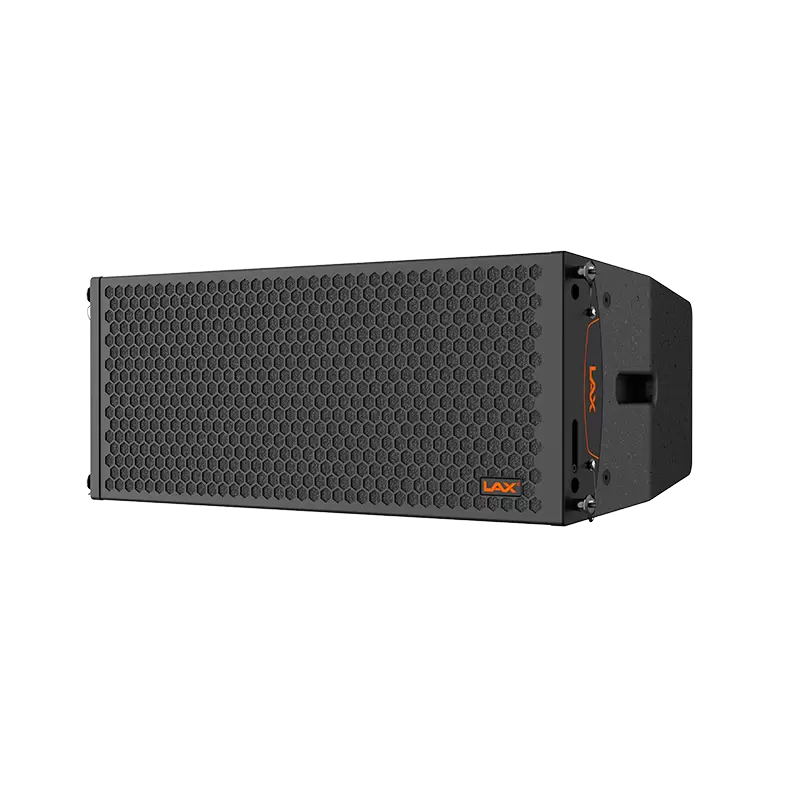

Dual 10" Two-way Line Array Speaker

The treble uses a ferrite unit to achieve line sound source conversion using LAX patented technology.

Bass using two 10 inch imported material ferrite unit, installed inthe phase type box, improve the low frequency effect. Hanging system adopts aluminum material, three hanging connection points, reduce weight, a maximum of 16 installation, safety factor of  7:1.

Adjustable Angle between speakers is 0-10, which can be combined with OPL118B low frequency speakers. Two installation methods: hanging and stacking. Applicable to LAX DSP audio processor and power amplifier,built-in preset program, to achieve the best factory effect.


OVERVIEW
Specifications
  • Frequency Response (±3 dB)
    80 Hz-20 kHz
  • Sensitivity (1W/1m)
    103 dB
  • Max SPL@ 1m
    140 dB
  • Rated Power (AES)
    600W
  • Nominal Impedance
  • Dispersion (HxV)
    100° x 20°
  • Woofer
    2 x 10'' / 65mm v.c
  • Connectors
    2 x NEUTRIK NL4MP
  • Connect Pin
    1+1-
  • Dimensions (WxHxD)
    752 x 424 x 285 mm
  • Net Weight
    29 kg
Accessories
