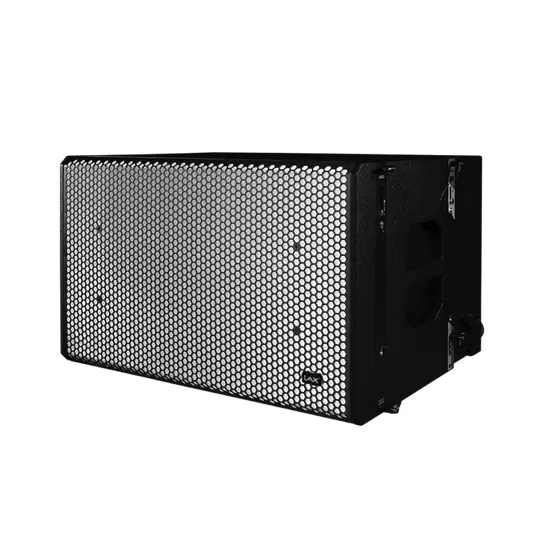

The NGC 28 is an ultra-compact, high-power horn-type diffused low-frequency loudspeaker system. It features dual 18-inch neodymium magnet high-power drivers with four coils and ultra-long stroke technology, housed in an ultra-compact horn-type diffused enclosure, achieving a maximum SPL of 148dB (peak).
A cleverly designed center-cooling structure ensures continuous high-power output over extended periods, achieving low-frequency output capabilities down to 28 Hz. The compact enclosure, the same width as the NGC12L, allows for both ceiling-mounted and floor-mounted stacking, extending the low-frequency limit across the entire range.
Constructed from 18mm Russian birch plywood, it is coated with a weather-resistant and impact-resistant PCP (polyurea enclosure protection) coating.
The acoustically permeable and dust-proof aluminum metal grille allows the loudspeaker to easily withstand harsh weather conditions.
OVERVIEW
Specifications
Frequency Response
34 Hz-160 Hz
Max SPL@ 1m
148 dB
Rated Power
2x1800W Nominal - 2x4000W Program
Nominal Impedance
2x8Ω
Woofer
2x18'' neodymium/4.5'' v.c
Connection
2 x 4 pin waterproof sockets
Dimensions (WxHxD)
1042 x 800 x 603 mm
Net Weight
108 kg
